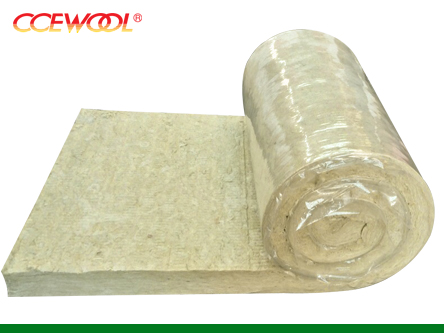

CCEWOOL® Stone Wool Blanket is flexible and can well fit irregular equipment and large pipes. Its good length can effectively reduce the number of joints and thermal bridges. Water repellent type and low chlorine type of products can be manufactured according to the requirement of customers. Aluminum foil, fiberglass cloth, and other veneer materials can also be overlaid to the surface of products.
CCEWOOL® industrial Stone Wool Blanket is mainly used for heat preservation, noise reduction, and personal protection from large-diameter pipes, large storage tanks, uneven surfaces, dust collector walls as well as flue gas pipes in power plants and chemical plants, and at the same time it strengthens fireproofing performance.
CCEWOOL® industrial insulation stone wool is widely used in nuclear power plants, power plants, chemical plants, refineries, pulp mills, steel mills and other industry fields, such as various process pipelines, industrial equipment, boilers, and storage tanks. It cuts down on heat loss in production, increases production efficiency, ensures process stability, provides safety protection, and reduces noise.

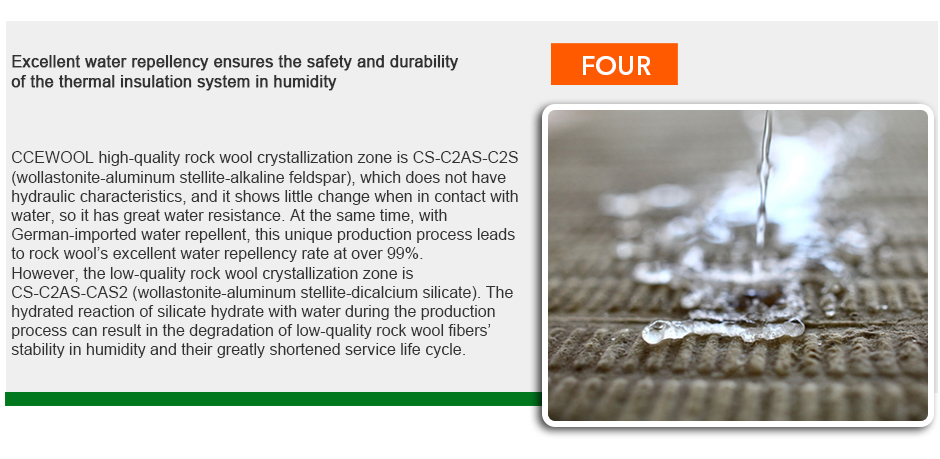

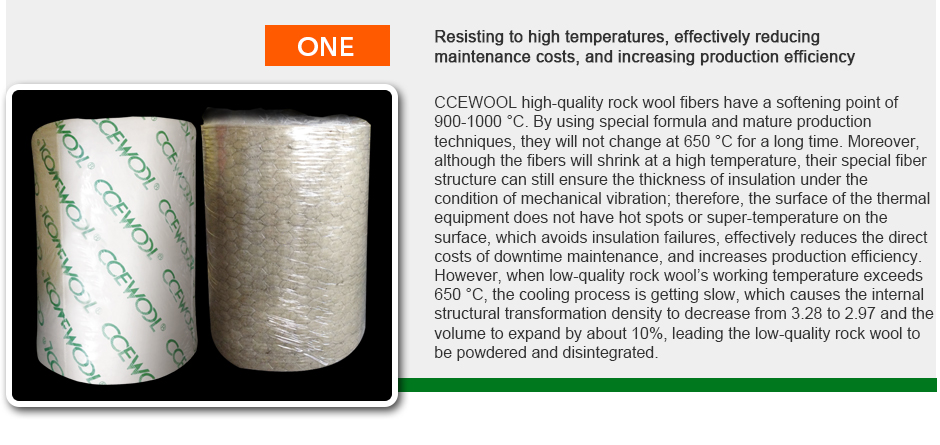

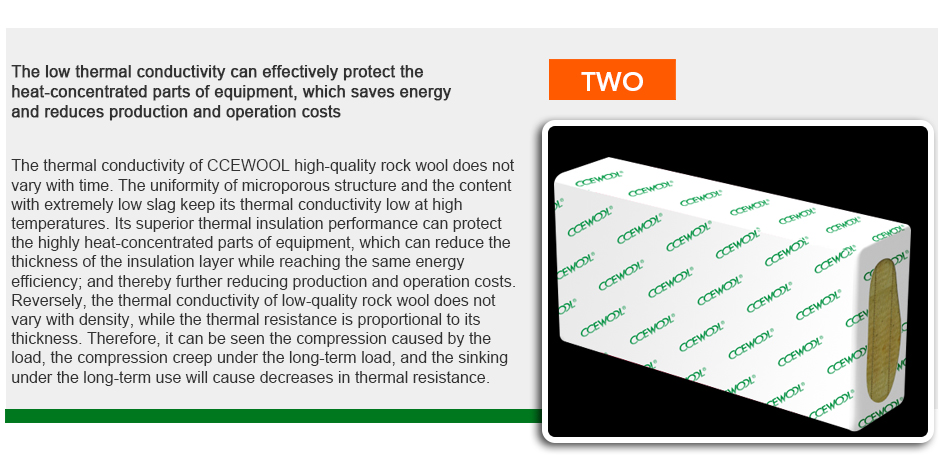

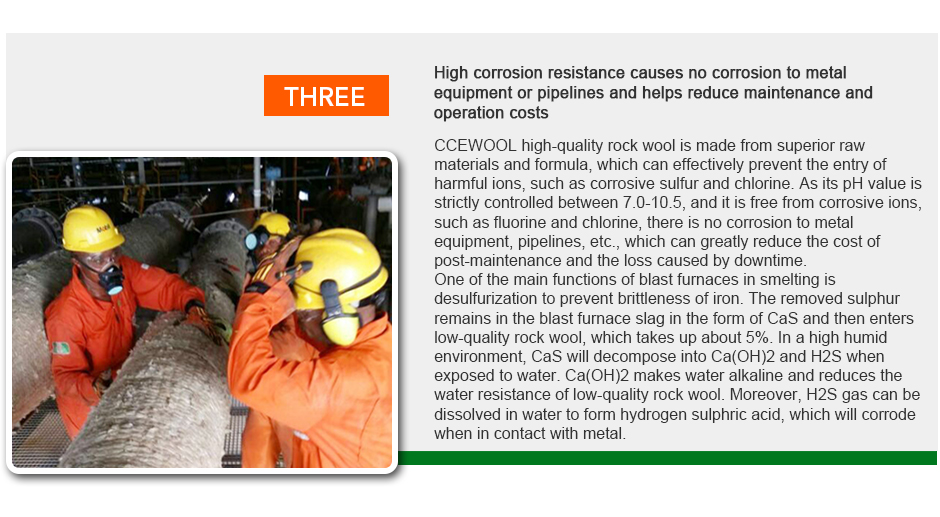

The features of CCEWOOL® industrial insulation stone wool include: high temperature resistance, excellent water repellency, high corrosion resistance, and low thermal conductivity. It can provide the highest level of protection for boilers, furnaces, distillation towers, valves and pipelines in petrochemical, power plants and other industrial production from heat and energy loss, fire, noise and other harmful effects.
CCEWOOL® industrial insulation stone wool meets both domestic and international standards, such as GB11835, GB50264, DL/T5072, SH3010, ASTM C612 and JIS A9504; thereby, it satisfies all the requirements in performance tests.
CCEWOOL® Stone Wool Blanket |
|||||
Performance |
Unit |
Density(kg/m3) |
Test Standards |
||
Thermal conductivity (average 25°C) |
W/(m.k) |
60 |
80 |
100 |
|
≤0.040 |
≤0.038 |
≤0.038 |
GB/T10295 |
||
Combustion performance |
-- |
Class A1 non-combustion |
GB8624 |
||
Hydrophobicity |
% |
≥99 |
≥99 |
≥99 |
GB/T10299 |
Maximum operating temperature |
℃ |
550 |
750 |
750 |
GB/T17430 |
Recommended operating temperature |
℃ |
450 |
650 |
650 |
GB50264 |
Heat load shrinkage temperature |
℃ |
400 |
400 |
400 |
GB/T11835 |
Linear shrinkage |
% |
≤2 |
≤2 |
≤2 |
ASTM C356 |
Corrosiveness |
-- |
No corrosion |
ASTM C665 |
