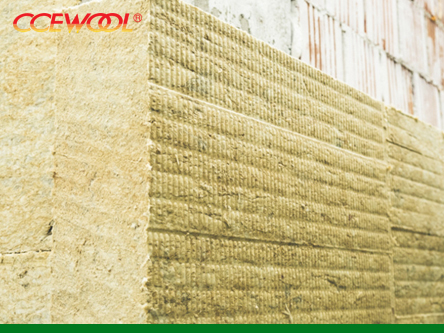

CCEWOOL® Stone Wool Board 110 is a high-density, rigid rock wool material designed for external continuous insulation applications in residential and commercial buildings, where enhanced compressive strength is required. This insulation board offers outstanding thermal, moisture, and breathable properties, effectively replacing traditional external insulation materials to create high-performance wall components. These components are not only fire-resistant, moisture-resistant, and thermally insulating but also offer excellent drying capacity, ensuring the long-term stability of the building.
CCEWOOL® Stone Wool Board 110 is non-combustible, with excellent fire, moisture, and thermal isolation performance, ensuring the wall system remains highly efficient in various environmental conditions. As an ideal building insulation material, it provides reliable fireproof, thermal insulation, and moisture control solutions, while improving the building's energy efficiency and comfort. Combining high density, thermal insulation, and fire resistance, CCEWOOL® Stone Wool Board 110 is particularly suitable for applications with high compressive strength requirements. It enhances the building's energy efficiency and provides long-lasting protection and a comfortable living experience, making it a trusted insulation material in the construction industry.
Excellent Soundproofing Performance, Creating Comfortable Environments: The stone wool material has outstanding noise reduction and sound absorption properties, effectively reducing noise interference and providing a quiet, efficient indoor experience.
Excellent Breathability, Preventing Moisture Buildup: The product has excellent breathability, helping the wall system stay dry and minimizing potential damage caused by condensation and water accumulation, thus extending the building's lifespan.
Strong Fire Protection, Ensuring Safety: With exceptional fire performance, it can withstand extreme temperatures of up to 2,150°F (1177°C), forming a solid protective barrier that provides reliable safety for buildings.
Reduced Thermal Bridge Effects, Enhancing Energy Efficiency: Effectively reduces the impact of thermal bridges on the building's insulation performance, significantly improving the overall thermal efficiency of the envelope, helping to achieve higher energy efficiency and energy-saving goals.
Features:
Excellent Breathability, Keeping It Dry;
Exceptional Fire Resistance, Ensuring Safety;
Eco-Friendly and Sustainable, A Green Choice;
Strong Moisture Resistance, Preventing Moisture Damage;
Durable R-Value, Enhancing Energy Efficiency;
Dimension Stability, Adapting to Variable Environments;
UV Resistance, Extending Lifespan;
Outstanding Sound Absorption, Optimizing Acoustic Environment.
Applications:
External wall continuous insulation;
Curtain wall systems;
Perimeter insulation for foundations;
Flat roof insulation;
Insulation beneath floors;
Fireproof insulation systems.
CCEWOOL® Stone Wool Board 110 |
||||||||
Density |
11 lb/ft³ (176 kg/m³) |
|||||||
Dimensions |
1” to 5”: 24"x48" (610 mm x 1219 mm) |
|||||||
1” to 3”: 48"x72" (1219 mm x 1829 mm) |
||||||||
Thickness |
1" (25.4 mm) |
|||||||
1.25" (32 mm) |
||||||||
1.5” (38.1 mm) |
||||||||
2" (50.8 mm) |
||||||||
2.5" (63.5 mm) |
||||||||
3" (76.2 mm) |
||||||||
4” (101.6 mm) |
||||||||
5” (127 mm) |
||||||||
Reaction to fire |
Class A Non-Combustible |
|||||||
Thermal resistance |
R-value / inch @ 75ºF - 4.0 hr.ft2.F/Btu |
|||||||
RSI value / 25.4 mm @ 24ºC - 0.70 m2K/W |
||||||||
Acoustical Performance |
Thickness |
125 Hz |
250 Hz |
500 Hz |
1000 Hz |
2000 Hz |
4000 Hz |
NRC |
1" |
0.13 |
0.49 |
0.85 |
0.89 |
0.89 |
0.97 |
0.8 |
|
2" |
0.5 |
0.71 |
0.85 |
0.9 |
0.96 |
1.01 |
0.85 |
|
Reaction to moisture |
Moisture Sorption - 0.28% |
|||||||
Compressive strength |
584 psf (28 kPa) @ 10% compression |
|||||||
1566 psf (75 kPa) @ 25% compression |
||||||||
Corrosion Resistance |
No corrosion |
Product Range |
|||
R-value |
Thickness (inch) |
Width (inch) |
Length (inch) |
4 |
1 |
24 |
48 |
4 |
1 |
48 |
72 |
5 |
1.25 |
24 |
48 |
5 |
1.25 |
48 |
72 |
6 |
1.5 |
24 |
48 |
6 |
1.5 |
48 |
72 |
8 |
2 |
24 |
48 |
8 |
2 |
48 |
72 |
10 |
2.5 |
24 |
48 |
10 |
2.5 |
48 |
72 |
12 |
3 |
24 |
48 |
12 |
3 |
48 |
72 |
14 |
3.5 |
24 |
48 |
16 |
4 |
24 |
48 |
20 |
5 |
24 |
48 |
