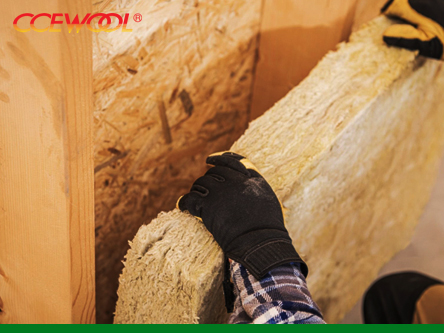

CCEWOOL® Stone Wool Batt is a high-performance semi-rigid stone wool insulation product designed for new construction and renovation of residential and commercial buildings. It is suitable for insulation systems in wood and steel frame walls, ceilings, floors, and attics. This stone wool batt features unique flexible edges that allow easy compression during installation, ensuring seamless filling of framing cavities while preventing over-compression, thus maintaining its excellent R-value performance.
The product is non-combustible and fire-resistant; even when directly exposed to flames, it will not emit toxic smoke or contribute to fire spread. In addition, it offers outstanding water resistance, moisture protection, and acoustic performance, making it an ideal choice for enhancing energy efficiency and creating a healthier indoor environment.
CCEWOOL® Stone Wool Batt combines high thermal efficiency, fire safety, and environmental sustainability, making it a premium solution widely applicable to various building needs—delivering safety, comfort, and sustainability.
Breathability: Excellent vapor permeability helps wall systems stay dry and prevents condensation and moisture accumulation.
Fire protection: Non-combustible with a high melting point, providing reliable fire barriers in case of fire.
Environmentally sustainable: Manufactured from natural and recycled materials, free of CFCs and HCFCs, reducing environmental impact.
Moisture resistance: Low hygroscopicity effectively resists moisture damage and ensures long-term stability.
Stable R-value: Maintains superior thermal resistance throughout its service life, improving energy efficiency and reducing consumption.
Dimensional stability: Retains shape and insulation performance even in high humidity or high temperature environments.
Acoustic performance: Excellent sound absorption significantly reduces noise transmission, improving indoor acoustics.
Insulation for exterior walls in wood and steel frame structures;
Insulation and soundproofing for exposed floors and crawl spaces;
Thermal insulation for attic and ceiling systems.
|
CCEWOOL® Stone Wool Batt |
|
|
Density |
>32 kg/m³(> 2 lb/ft³) |
|
Dimensions |
Wood Stud 16" (406 mm) on center: 15.25" x 47" (387 mm x 1194 mm) |
|
Wood Stud 24" (610 mm) on center: 23" x 47" (584 mm x 1194 mm) |
|
|
Steel Stud 16" (406 mm) on center: 16.25" x 48" (413 mm x 1219 mm) |
|
|
Steel Stud 24" (610 mm) on center: 24.25" x 48" (616 mm x 1219 mm) |
|
|
Reaction to fire |
Class A Non-Combustible |
|
Thermal resistance |
Varied from R-10-R38 |
|
R 14 (RSI 2.47) - 3.5" thick (89 mm) R 10 (RSI 1.76) - 2.5" thick (64 mm) |
|
|
R 22 (RSI 3.87) - 5.5" thick (140 mm) R 14 (RSI 2.47) - 3.5" thick (89 mm) |
|
|
R 24 (RSI 4.23) - 5.5" thick (140 mm) R 22.5 (RSI 3.96) - 6" thick (152 mm) |
|
|
R 28 (RSI 4.93) - 7.25" thick (184 mm) R 24 (RSI 4.23) - 6" thick (152 mm) |
|
|
R 32 (RSI 5.64) - 8" thick (203 mm) |
|
|
Product Range |
|||
|
R-value |
Thickness (inch) |
Width (inch) |
Length (inch) |
|
13 |
3.5 |
15.25 |
47 |
|
13 |
3.5 |
23 |
47 |
|
15 |
3.5 |
15.25 |
47 |
|
15 |
5.5 |
23 |
47 |
|
21 |
5.5 |
15.25 |
47 |
|
21 |
5.5 |
23 |
47 |
|
23 |
5.5 |
15.25 |
47 |
|
23 |
5.5 |
23 |
47 |
|
30 |
7.25 |
15.25 |
47 |
|
30 |
7.25 |
23 |
47 |
