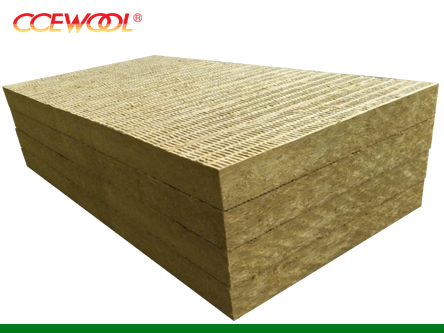

CCEWOOL® Stone Wool Board for Construction can be manufactured in different densities and thicknesses according to specific needs. It is widely used in residential, commercial, public, and industrial buildings. The main applications include fire protection, thermal insulation, and soundproofing for various interior partitions, transparent curtain walls, and metal or stone cladding systems. It can also be used as fireproof, thermal, and acoustic insulation when filled into lightweight steel structure roofs and wall frames. In addition, it is suitable for ceilings, fire doors, and mezzanine floors.
CCEWOOL® Stone Wool Board for Construction can be laminated with aluminum foil, single-sided or double-sided fiberglass cloth, or other facing materials.
Easy to cut: Flexible and easy to handle, allowing precise cutting to fit different installation needs.
Non-combustible: High melting point provides superior fire protection for buildings.
Excellent sound absorption: Outstanding acoustic performance effectively reduces noise transmission and optimizes indoor acoustics.
High-melting fire resistance: Heat-resistant material ensures stable performance during fire, providing extra evacuation time.
Mold- and fungus-resistant: Will not rot or support mold or fungal growth, ensuring a healthy building environment.
Low moisture absorption: Low water uptake resists moisture effects and maintains insulation performance.
Water- and moisture-resistant: Repels water, does not absorb moisture, and ensures long-term insulation and fire protection performance.
External wall insulation;
Thermal and fire protection for spandrel areas;
Mullion cover panels in curtain wall systems;
Interior wood or steel stud partition walls;
Interior wood structure floors;
Interior wood structure ceilings.
|
CCEWOOL® Multifunctional Stone Wool Board for Construction |
|||||||
|
Category |
Numerical value |
||||||
|
Density |
40 kg/m3 |
50 kg/m3 |
60 kg/m3 |
80 kg/m3 |
100 kg/m3 |
120 kg/m3 |
140 kg/m3 |
|
Thermal Conductivity |
0.036 W/(m.K)25℃ |
0.034 W/(m.K)25℃ |
0.034 W/(m.K)25℃ |
0.034 W/(m.K)25℃ |
0.034 W/(m.K)25℃ |
0.034 W/(m.K)25℃ |
0.034 W/(m.K)25℃ |
|
Combustion performance |
Class A Non-Combustible |
Class A Non-Combustible |
Class A Non-Combustible |
Class A Non-Combustible |
Class A Non-Combustible |
Class A Non-Combustible |
Class A Non-Combustible |
|
Moisture absorption rate |
≤0.04% by vol. |
≤0.04% by vol. |
≤0.04% by vol. |
≤0.04% by vol. |
≤0.04% by vol. |
≤0.04% by vol. |
≤0.04% by vol. |
|
Water absorption (partial immersion) |
≤0.5kg/m2 |
≤0.5kg/m2 |
≤0.5kg/m2 |
≤0.5kg/m2 |
≤0.5kg/m2 |
≤0.5kg/m2 |
≤0.5kg/m2 |
